Electrical enclosures for low-voltage applications. Version Economic.

  • For low-voltage electrical assembling
  • Certified according to NBR IEC 62208:2003
  • Certified according to UL 508, UL 50, UL 50E, CSA C22.2 No. 14-05, 94.1-07 and 94.2-07.
  • Economic version
  • Indoor Use
  • IP55 Protection Grade (NEMA 12)
  • RAL 7035 (other colors on request)
  • Tubular frame
  • Continuous form
  • High tensile strength, especially against twisting
  • Assembly plates in galvanized steel with 2.7mm
  • KTL technology painting
  • Antitrust protection
  • FIPFG Technology
  • Sealing in expanded polyurethane without splicing and the use of glues
  • Protection against aging

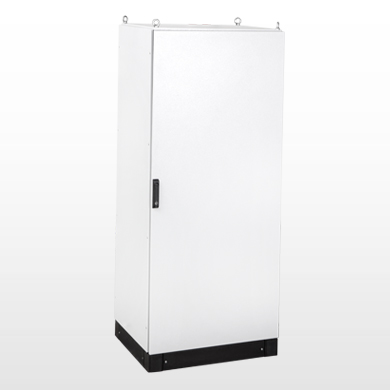

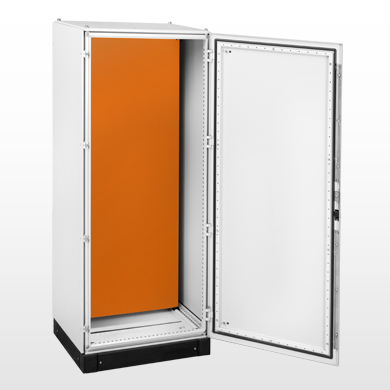

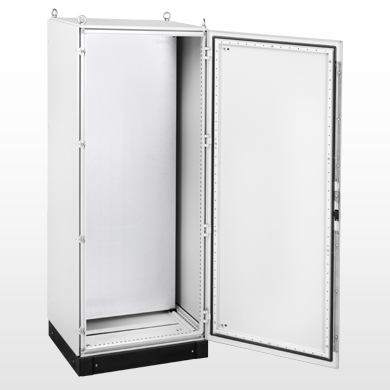

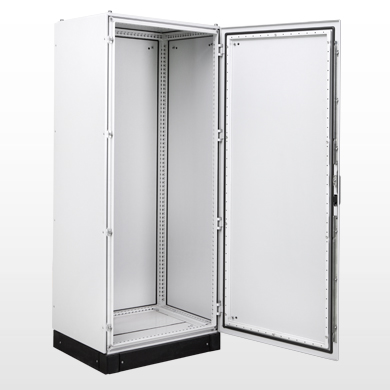

FSu Model

Indoor electric cabinet with IP55 protection grade, for low-voltage electrical installation. The FSu model is the economic version of the FSi model, with similar technical and constructive features.

This model is certified according to NBR IEC 62208-2003, UL 508, UL 50, UL 50E, CSA C22.2 No. 14-05, 94.1-07 and 94.2-07.

The surface treatment is made by an automatic pre-treatment and cathodic electrophoretic painting, a technology known as KTL or E-COAT, renowned in anticorrosive protection around the world and widely used in the auto and spare parts industries.

The FSu model can be purchased in the semi-assembled version should the client wish to save in purchase, shipping and storage. Also, the client may acquire the air conditioned cabinet from factory with air conditioner or heat exchanger.

For more information, contact our commercial department.

Page under construction

Standard Supply :

4 height frames, 4 width frames, 1 door, 1 floor, 2 side covers and 1 rear cover

Assembly:

The cabinets can be purchased in the assembled or semi-assembled versions (see logistics)

Extra Accessories:

  • Support rails
  • Mounting plate
  • Base
  • Coupling corner piece
  • Coupling support
  • Hoisting rings
  • Air conditioners
  • Air/Air heat exchanger
  • Air/Water heat exchanger

Technical Support:

The products receive specialized technical support.
