AIR / AIR Heat Exchangers

  • Designed for electrical panels and telecommunications enclosures
  • Applications indoor or outdoor
  • AC and DC power supply
  • Thermal exchange capacity of 20 to 250 W/K
  • Remove the heat generated within the cabinet or panel
  • Establish temperature differential in relation to the external environment
  • High tensile strength protection
  • Dissipation block built in aluminum plates
  • Internal environment completely protected from the outside environment
  • Removable dissipation block, enabling easy exchanger cleaning
  • Incomparable cost/benefit ration
  • Easy maintenance
  • Permanent technical support

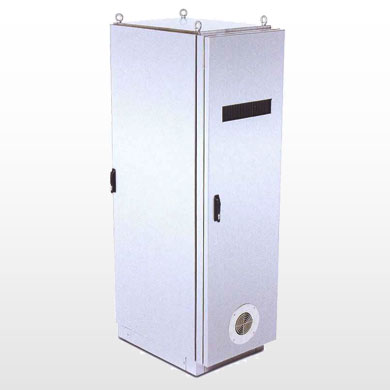

  • The electrical panels or telecommunications cabinets manufactured by KitFrame can be supplied with heat exchanger
AIR / AIR Heat Exchangers

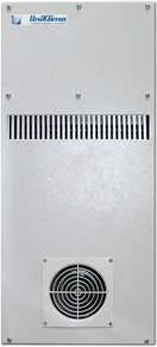

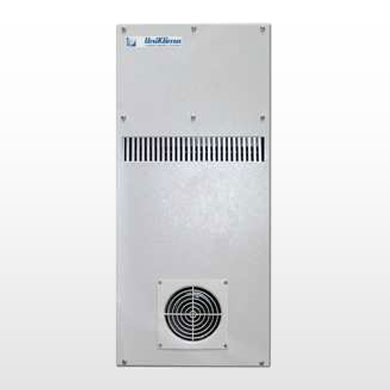

The Uniklima Air/Air heat exchangers are specially designed and built for use in electrical panels and telecommunications cabinets.

The product line has equipment with heat exchange capacity at the range of 20 to 250 W/K with AC and DC power supply. The air/air heat exchangers are designed to remove the heat generated within the panel, establishing a temperature differential with the outside environment (usually from 6 to 12 degrees).

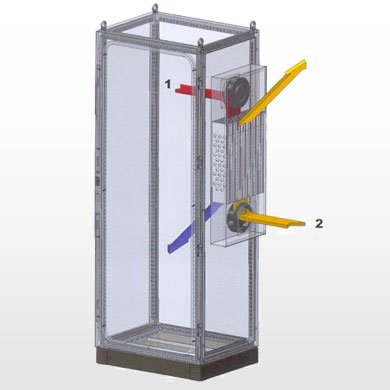

Its operation is based on the thermal exchange between opposite flows separated by aluminum plates and mounted on dissipation blocks.

The dissipation block is manufactured in aluminum plates mounted with spacers and fixing rods. Its construction creates channels for internal and external air flow in both directions. As the air flows do not mix, the sealing of the panel is not affected and the electrical protection grade is preserved. Removable dissipation block, enabling its periodical cleaning.

Click on the model to see the technical data sheet.

Model (Capacity)

Standard Supply:

1 Air/Air Heat Exchanger of the EXR series

Technical Assistance:

The products receive specialized technical support.
